KYG0335

KYG เครื่องขัดเงาแบบถังชนิดเปียก (ถังเดี่ยว/ถังคู่/สามถัง)

KYG

มีการกำหนดค่าแบบกำหนดเองให้เลือก

Durable wet polishing tumbler with flexible single, double, or triple barrel options for versatile finishing tasks. Ideal for metal part polishing and batch processing.

แชร์สินค้า

แชร์บน WhatsApp

ตัวเลือกใบเสนอราคาที่มี

เปรียบเทียบรุ่นย่อยที่มีให้เลือก

เลือกรุ่นที่ต้องการข้างภาพหลัก จากนั้นใช้ตารางนี้เพื่อเปรียบเทียบพารามิเตอร์โดยละเอียด

เปรียบเทียบรุ่นย่อยที่มีให้เลือก

6 parameters

รุ่นVA18/1KYG0335-VA18-1V18/2KYG0335-V18-2VA18/3KYG0335-VA18-3VA36/1KYG0335-VA36-1VA36/2KYG0335-VA36-2VA36/3KYG0335-VA36-3
Power0.75KW2×0.75KW3×0.75KW2.20KW2×2.20KW3×2.20KW
Working Capacity14L2×14L3×14L28L2×28L3×28L
Voltage220V/50-60HZ220V/50-60HZ220V/50-60HZ380V/50-60HZ380V/50-60HZ380V/50-60HZ
Overall Dimension690×850×1440mm1170×850×1440mm1680×850×1440mm880×780×1450mm1480×780×1450mm2120×780×1450mm
Weight150KG280KG410KG210KG380KG540KG
Volume18L2×18L3×18L36L2×36L3×36L

ใช้ตัวเลือกข้างภาพสินค้า ตารางด้านล่างใช้สำหรับการเปรียบเทียบโดยละเอียด

ตรวจสอบรายการสอบถาม

จุดเด่น

  1. 01

    Durable alloy construction withstands heavy use

  2. 02

    Flexible barrel options match batch sizes and throughput needs

  3. 03

    Resource-saving water circulation system improves cost efficiency

การใช้งาน

  • Surface polishing of metal parts in manufacturing

  • Deburring and edge rounding for CNC-machined components

  • Batch processing multiple workpieces for consistent finishing

ภาพรวม

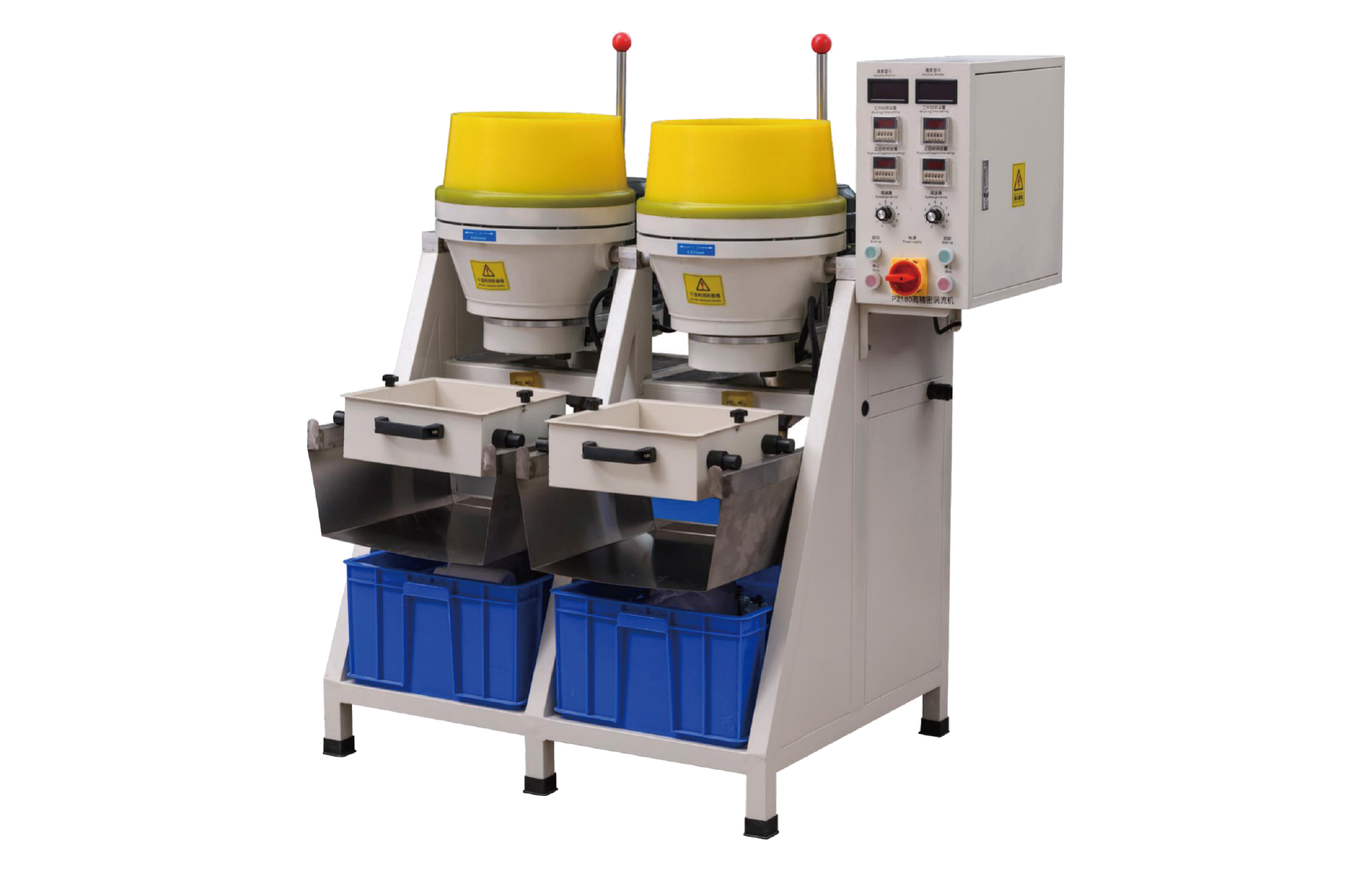

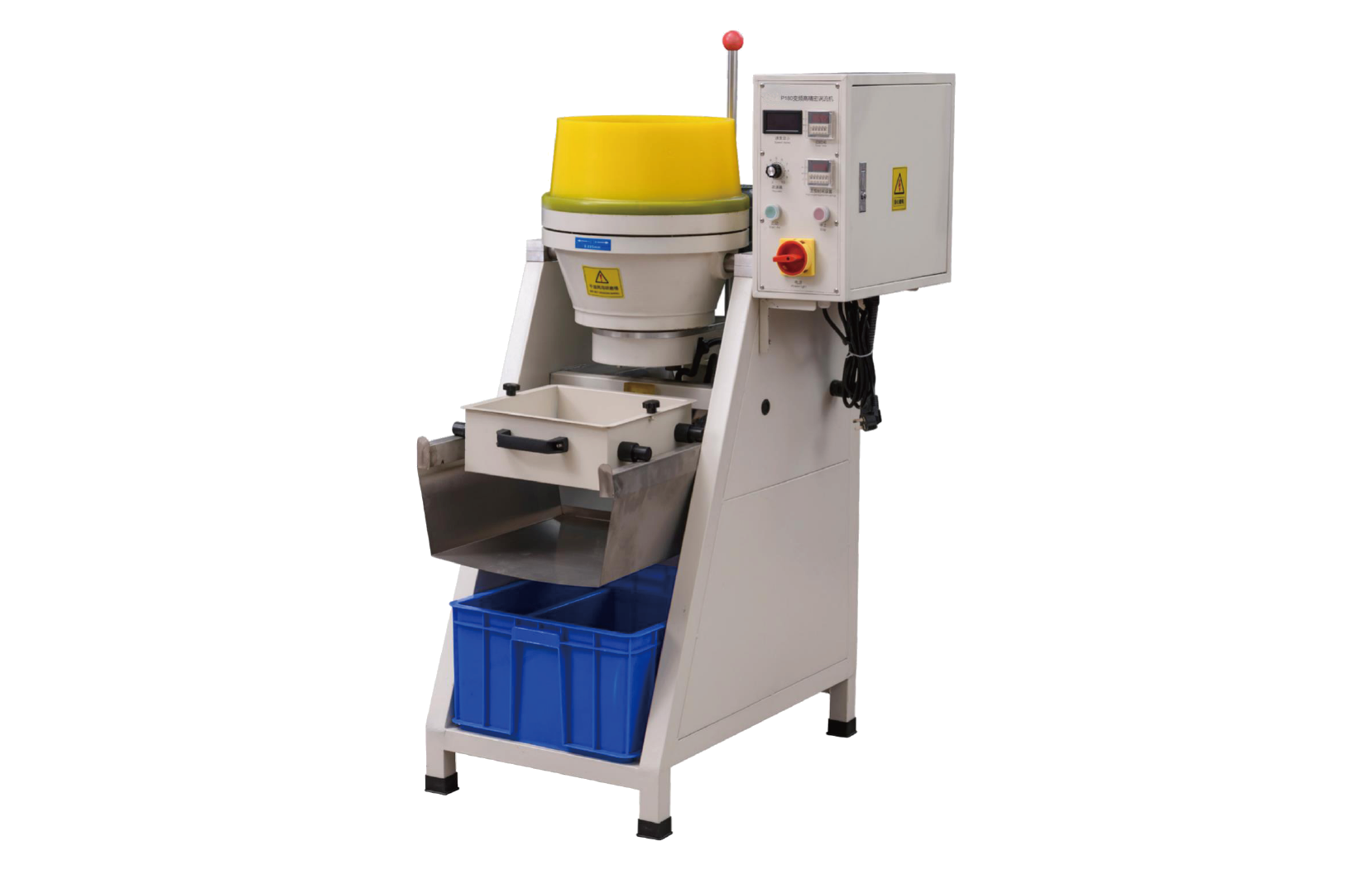

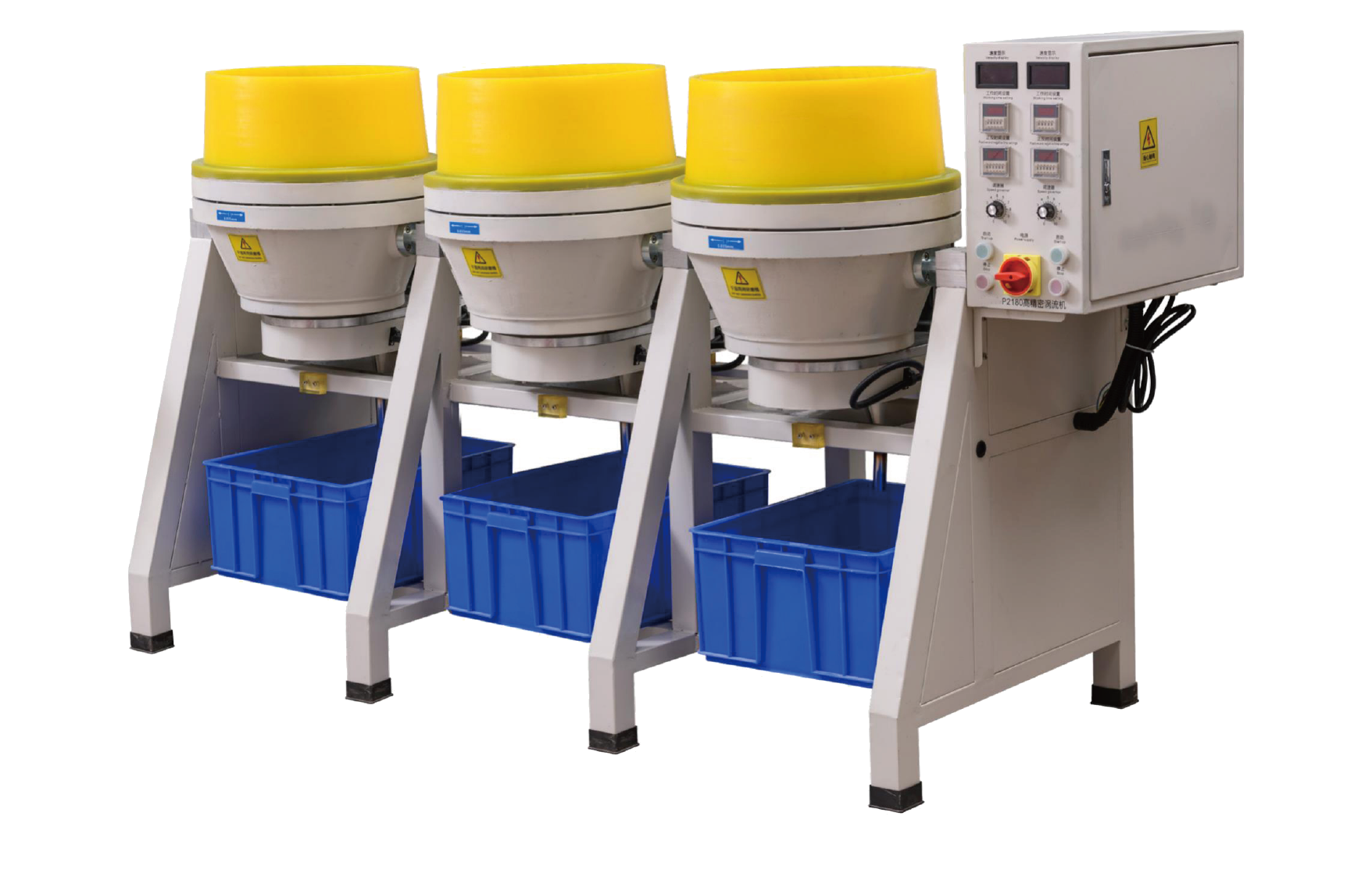

KYG Wet Type Polishing Tumbler (Single/Double/Triple) is designed to deliver reliable, efficient finishing performance across various industrial applications. With robust alloy construction and customizable barrel configurations—single, double, or triple—this machine adapts easily to different batch sizes and production demands. Its advanced water circulation system minimizes resource use and supports cost-effective, environmentally conscious operation. Suited for both wet and dry processes, the tumbler excels at polishing, deburring, and consistent surface treatment of metal components for manufacturing and tooling industries.

ข้อมูลทางเทคนิค

ข้อมูลจำเพาะ

5 parameters

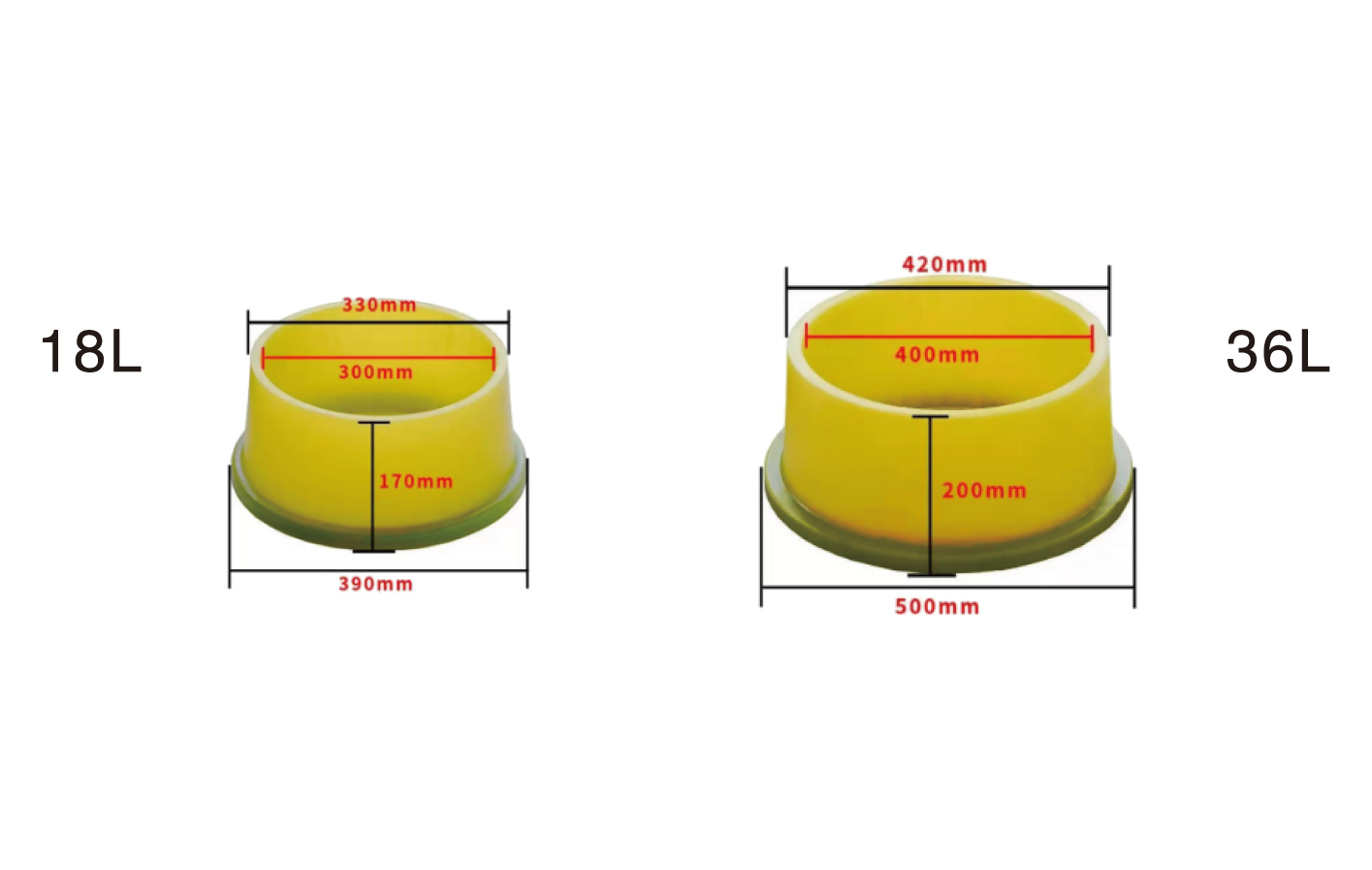

Volume18L / 36L (single barrel)
Voltage220V or 380V / 50-60Hz
Power0.75KW (18L) / 2.20KW (36L)
Overall Dimension690×850×1440mm to 2120×780×1450mm (configuration-dependent)
Weight150KG to 540KG (configuration-dependent)
