KYG0709KYG

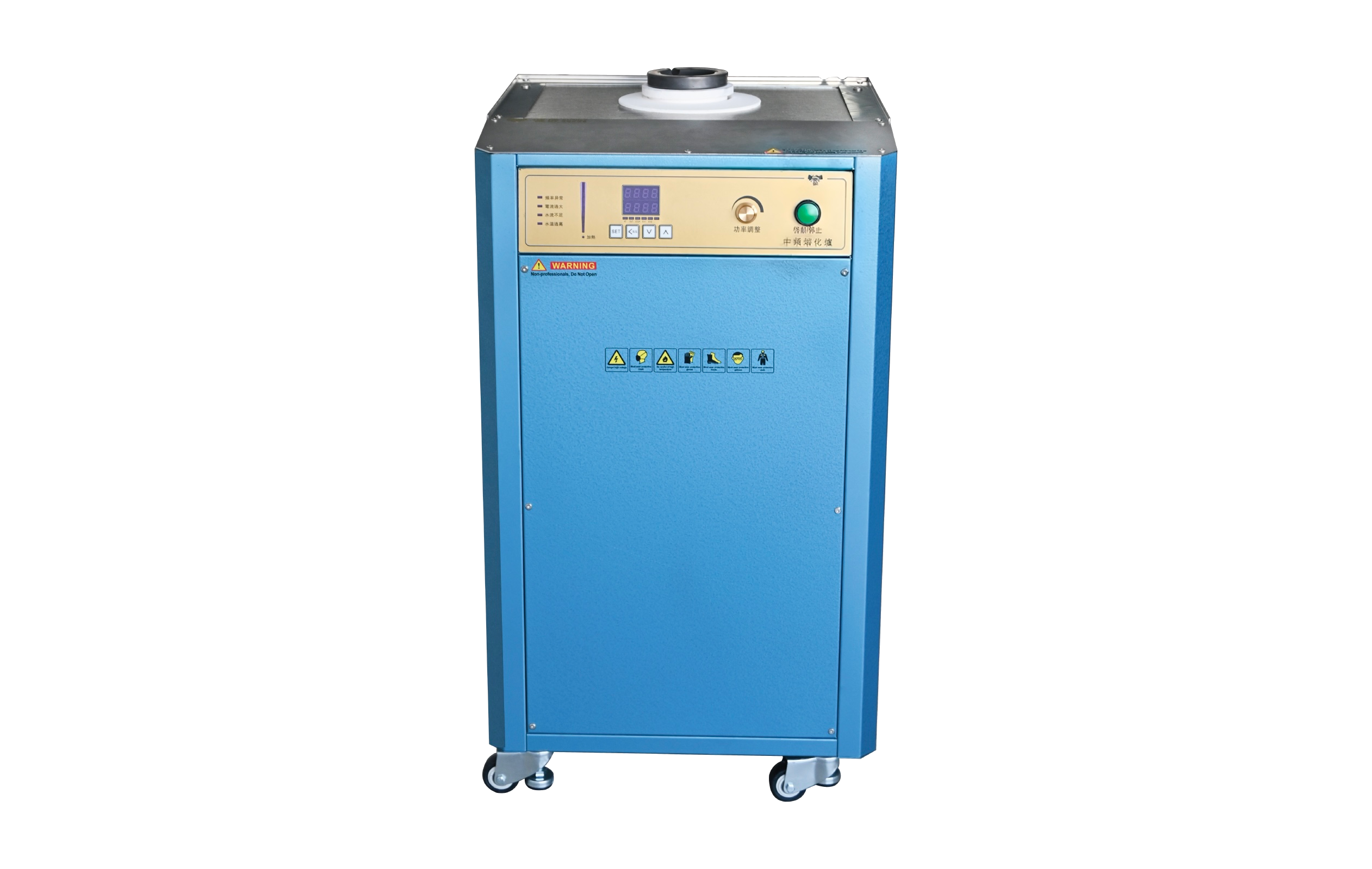

Engineered for fast, uniform gold melting, the KYG Medium-Frequency Induction Gold Melting Furnace provides precise temperature control and robust safety, ideal for small-scale production.
Available quote options
Select the required model beside the main image, then use this table to compare detailed parameters.
1 parameters
| Capacity | 2KGKYG0709-2KG | 3KGKYG0709-3KG | 4KGKYG0709-4KG | 5KGKYG0709-5KG | 6KGKYG0709-6KG | 8KGKYG0709-8KG |
|---|---|---|---|---|---|---|
| Power | 10KW | 12KW | 13KW | 15KW | 15KW | 18KW |
Use the selector beside the product image; the table below is for detailed comparison.
Review enquiry listFast, uniform gold melting with induction heating reduces cycle times.
Digital PID control offers accurate, repeatable temperature management.
Multi-layer safety protection minimizes downtime and operational risk.
Jewelry-making and goldsmith workshops
Lab-scale precious metal alloy production
Batch casting for small foundries and repair shops
The KYG Medium-Frequency Induction Gold Melting Furnace is built to deliver efficient and consistent melting of gold and precious metals using advanced magnetic induction heating technology. With digital PID temperature control, it ensures accurate, repeatable results and short process cycles. Integrated safety protections and user-friendly controls make it a reliable solution for jewelers, laboratories, and small foundries seeking both productivity and safety in their melting operations.
Technical data
17 parameters
| Power Cord Requirements | More than 4 mm² |
|---|---|
| Leakage Switch Current | 30 A |
| Cooling Water Input Pressure | MIN 3 bar / MAX 5 bar |
| Cooling Water Input Flow | More than 3 L/min |
| Cooling Water Input Temperature | 20–35 °C, not exceed 40 °C |
| Temperature Display Range | 0–1370 °C (33.8–2498 °F) |
| Temperature Setting Range | 0–1200 °C (33.8–2192 °F) |
| Working Area Temperature | Max 1100 °C |
| Mode of Heating | Intermediate frequency magnetic field induction |
| Temperature Control | PID temperature control, digital display |
| Standard Fittings | Crucible pliers, graphite crucible, Shi Ying jacket |
| Protection Measures | Self-inspection for water shortage, temperature, overcurrent, no load (crucible) protection |
| Size | 480 × 525 × 885 mm |
| Voltage | 380 V |
| Discharge | 2.5 L/min |
| Net Weight | 55 kg |
| Water Pressure | 2.0 kPa |
