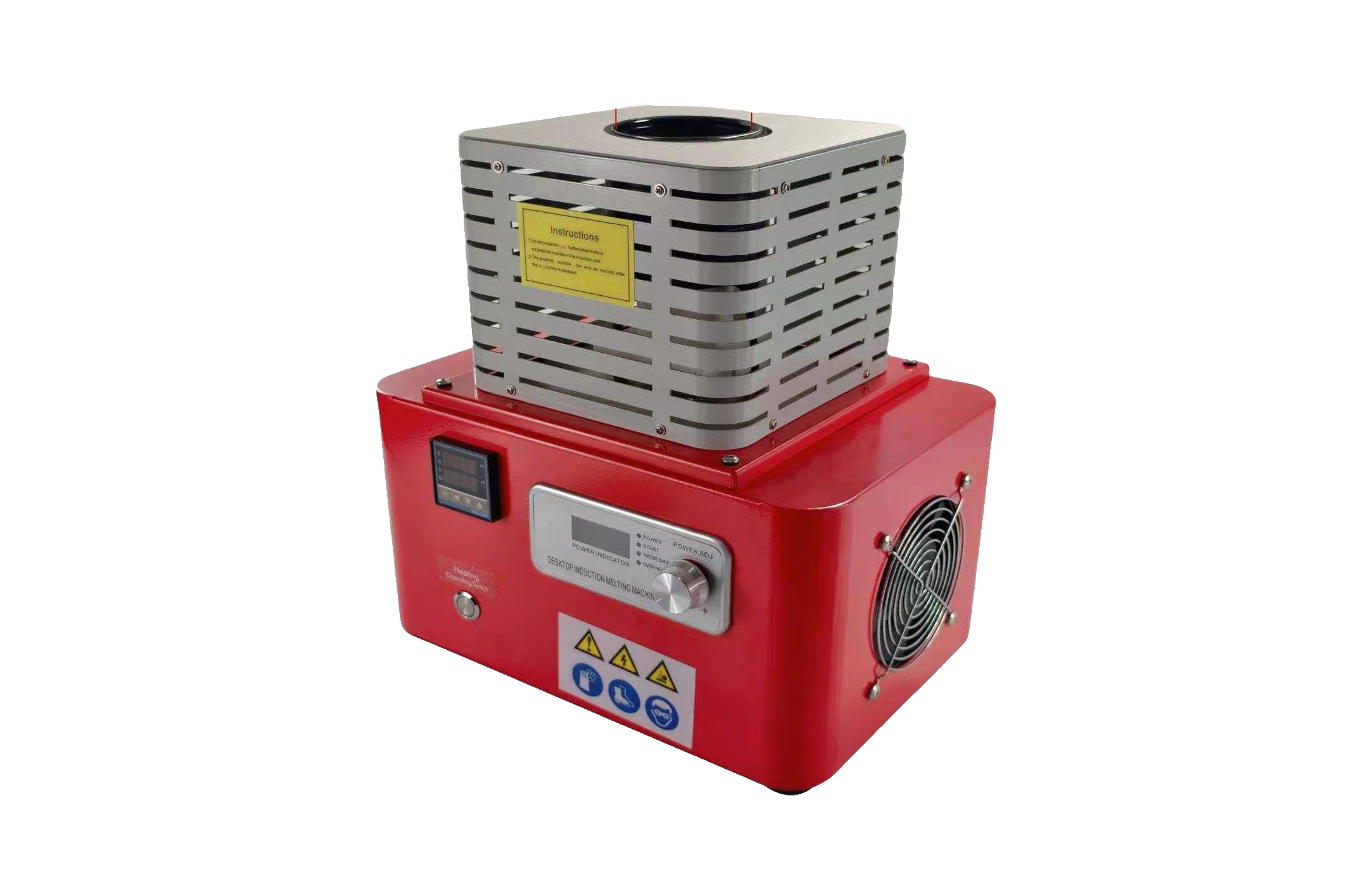

KYG1743KYG Medium Frequency Induction Melting Furnace 3 kg
KYG
Medium-frequency induction furnace with 3 kg capacity, 6000W power, and up to 1450°C. Ideal for efficient melting of precious and non-ferrous metals.
Highlights
- 01
Efficient melting with 6000W power and temperatures up to 1450°C.
- 02
Compact design with 3 kg crucible capacity for moderate metal batches.
- 03
User-friendly digital controls and stable induction heating for consistent results.
Applications
Laboratory melting of gold, silver, and non-ferrous metals.
Jewelry production and alloy research applications.
Small-scale metal refining and educational demonstration.
Overview
The KYG Medium Frequency Induction Melting Furnace 3 kg delivers strong performance for moderate metal melting tasks in jewelry, laboratory, and research environments. Its 6000W rated power and induction heating technology ensure rapid temperature rise and stable operation, reaching temperatures up to 1450°C.
The compact structure offers a 3 kg graphite or quartz crucible capacity, making it well-suited for workspaces with limited room. User-friendly digital controls allow easy temperature management and reliable operation, supporting a smooth workflow for regular melting and alloy development tasks.
Technical data
Specifications
8 parameters
| Melting Capacity | 3 kg |
|---|---|
| Rated Power | 6000 W |
| Temperature Range | 0–1450 °C |
| Crucible Opening Diameter | 95 mm |
| Machine Dimensions | 340 × 237 × 385 mm |
| Net Weight | 10.05 kg |
| Crucible Type | Graphite / Quartz |
| Crucible Capacity | 3 kg |
Package contents
- Induction melting furnace main unit
- Water hoses (2 pcs)
- Crucible tongs (1 pc)
- Graphite and quartz crucible (1 pc each, 3 kg)
