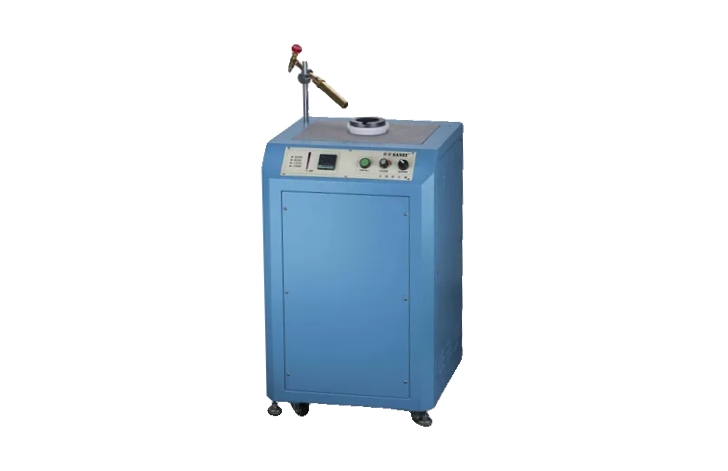

SANEI Gold & Silver Induction Melting Furnace
SANEI
Medium frequency induction melting furnace for gold and silver with PID temperature control, rapid melting, and built-in safety protections.
Highlights
- 01
Medium frequency induction heating allows continuous and rapid melting.
- 02
PID digital temperature control with range up to 1200ºC.
- 03
Comprehensive safety system: water shortage, temperature, overcurrent, and no-crucible protection.
- 04
Melting capacity up to 15kg gold per cycle, compatible with multiple crucible sizes.
- 05
Reliable build with over 10 years of proven stability in industrial use.
Applications
Small scale gold and silver casting
Melting alloy, white gold, platinum, and brass
Preparation of casting material ingredients
Cleaning and processing old material
Overview
The SANEI Gold & Silver Induction Melting Furnace is designed for efficient and continuous melting of gold, silver, and other precious metals. Featuring Japanese technology with imported components and IGBT modules, this crucible furnace offers rapid heating—up to 50% faster than previous systems. Its medium frequency induction heating ensures consistent performance without the need for process interruptions. Equipped with comprehensive safety features and PID digital temperature control, it is suitable for small-scale casting, material ingredient melting, and old material cleaning.
Technical data
Specifications
20 parameters
| Gold & Silver Induction Melting Furnace | |
|---|---|
| Power Supply | 3-phase, AC 380 V, 50/60 Hz |
| Optional Power Supply | 3-phase, AC 420 V, 50/60 Hz |
| Rated Power | 6.5 kW |
| Power Cable Size | >4 mm² |
| Residual Current Circuit Breaker Rating | 30 A |
| Cooling Water Inlet Pressure | 3–5 bar |
| Cooling Water Flow Rate | >3 L/min |
| Cooling Water Temperature | 20–35 ℃ (68–95 °F), Max. 40 ℃ (104 °F) |
| Temperature Display Range | 0–1370 ℃ (32–2498 °F) |
| Temperature Setting Range | 0–1200 ℃ (32–2192 °F) |
| Maximum Working Temperature | 1100 ℃ |
| Heating Method | Medium-Frequency Induction Heating |
| Temperature Control | PID Temperature Control, Digital Display |
| Melting Capacity | 2 / 2.5 / 4 / 5.5 / 10 / 15 kg (Gold) |
| Applicable Materials | Gold, Silver, Brass and Other Alloys |
| Standard Accessories | Crucible Tongs, Graphite Crucible, Ceramic Crucible |
| Safety Protection | Water Shortage, High Water Temperature, Overcurrent and No-Load Protection |
| Machine Dimensions | L 500 × W 500 × H 815 mm |
| Packing Dimensions | L 570 × W 570 × H 990 mm |
| Net Weight | 100 kg |
Package contents
- Crucible tongs
- Graphite crucible
- Ceramic crucible
Frequently asked questions
What is the maximum gold melting capacity per cycle?
The furnace can melt up to 15kg of gold per cycle depending on the chosen crucible.
What protection features are included?
It includes water shortage, water temperature, overcurrent, and no-crucible protection self-tests.
What is the typical melting time?
Typical melting time is approximately 3 minutes.
What types of metals are supported?
Supports melting gold, silver, white gold, platinum, brass, and alloys.
