SNBK0002

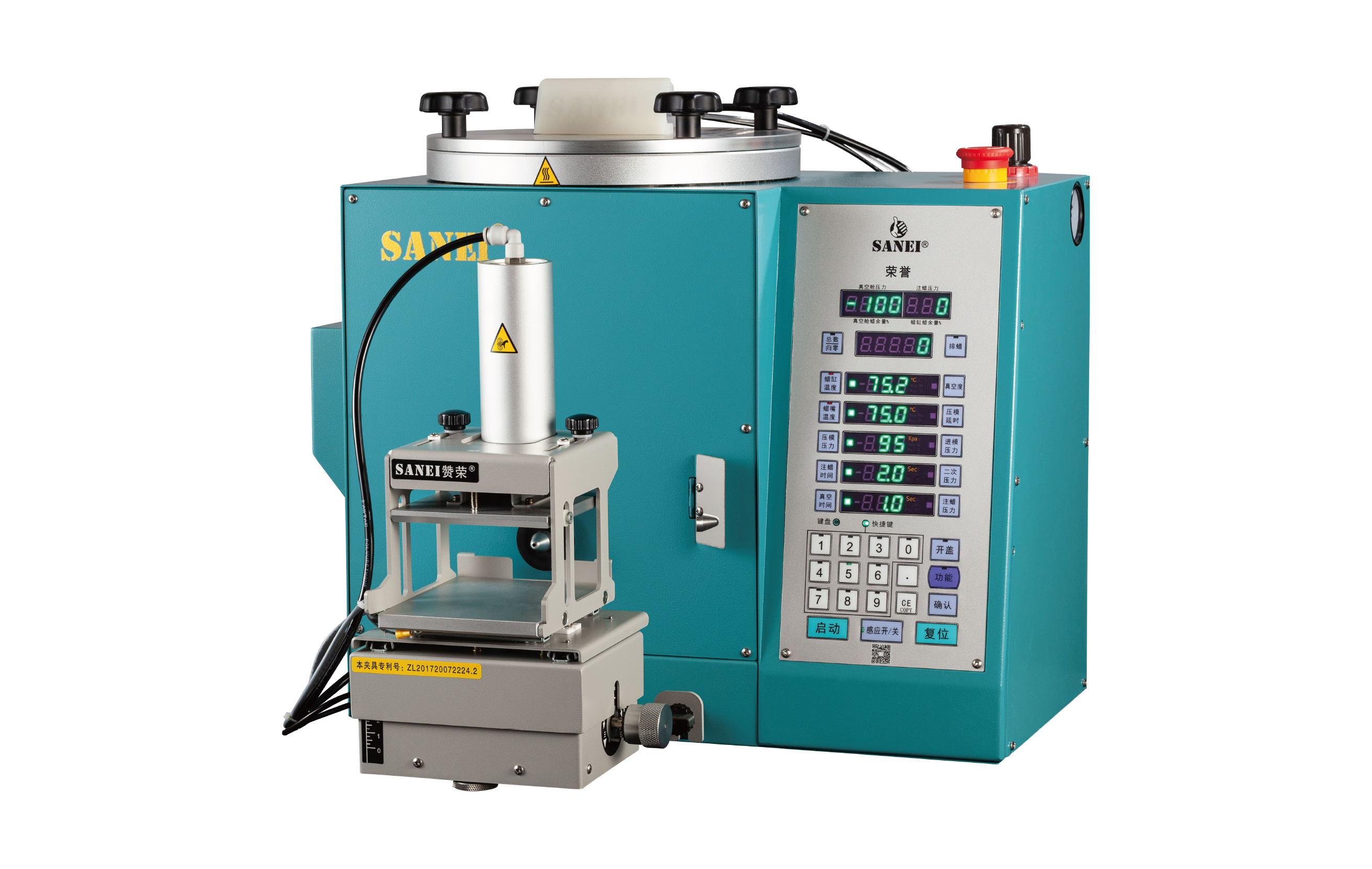

SANEI Honor Digital Vacuum Wax Injector
SANEI · Honor
Innovative digital vacuum wax injector featuring ARM CPU and automation for precise, efficient operation with reduced defects in wax model production.
Highlights
- 01
Custom digital display ensures intuitive operation for all users.
- 02
High-performance ARM CPU supports fast, stable startup and processing.
- 03
Multi-level real-time detection and monitoring enhance productivity and reduce errors.
Applications
Precision wax model injection in jewelry manufacturing.
Rapid prototyping of wax models for investment casting.
Production setups requiring low defect rates and minimal manual intervention.
Overview
The SANEI Honor Digital Vacuum Wax Injector sets a new standard for wax injection technology, blending a custom digital display for user-friendly control with a powerful ARM processor for rapid, stable operation. Its advanced mechanical design ensures high precision, reduced defects, and less maintenance downtime. Integrated automation—including shortcut keys, mold and air detection, and error prevention—streamlines workflows and maximizes productivity. This makes it ideal for tasks ranging from detailed jewelry prototyping to demanding, scale-driven production environments.
Technical data
Specifications
43 parameters
| Wax Injector Specifications | |
|---|---|
| Power Supply | Single-phase, AC 100–220 V ±10%, 50/60 Hz |
| Rated Power | 450 W |
| Temperature Display Range | 55.0–105.0 ℃ (131–221 ℉) |
| Temperature Setting Range | 55.0–100.0 ℃ (131–212 ℉) |
| Temperature Accuracy | ±0.5 ℃ |
| Vacuum Time | 0.0–60 s |
| Wax Injection Time | 0.1–180 s |
| Time Resolution | 0.1 s |
| Wax Volume | 1–10 |
| Vacuum Level | 40–100% |
| Scheduled Heating Start Timer | 0–300 days |
| Wax Tank Capacity | Approx. 3.5 kg |
| Pressure Gauge Range | 0–0.22 MPa (0–2.2 kgf/cm²) |
| Fuse Rating | 5 A |
| Packing Dimensions | H 600 × W 390 × D 590 mm |
| Net Weight | 20 kg |
| Gross Weight | 23 kg |
| Clamp Unit Specifications | |
| Air Supply Pressure | 0.4–0.8 MPa |
| Pressure Regulator Range | 0.4–0.55 MPa |
| Pressure Sensor Range | 0–450 kPa |
| Primary Wax Injection Pressure | 10–180 kPa / 1.5–26.1 psi |
| Secondary Wax Injection Pressure | 30–180 kPa / 4.4–26.1 psi |
| Secondary Wax Injection Start Delay | 0.0–1.0 s |
| Mould Release Delay | 0.0–20 s |
| Fixture Clamping Pressure | 35–450 kPa / 5.1–65.3 psi |
| Secondary Clamping Pressure | 35–450 kPa / 5.1–65.3 psi |
| Fixture Advance Pressure | 60–150 kPa / 8.7–21.8 psi |
| Fixture Holding Time | 0–40 s |
| Maximum Workpiece Count | 0–99,999; Total: 99,999 |
| Stored Parameter Sets | 10 sets |
| Activation Method | Magnetic sensor (including push button) or foot switch |
| Rubber Mould Size (Standard) | L 135 × W 105 × D 65 mm (Max.) |
| Rubber Mould Size (Wide) | L 135 × W 135 × D 65 mm (Max.) |
| Packing Dimensions | H 565 × W 280 × D 310 mm |
| Net Weight | 8 kg |
| Gross Weight | 9.5 kg |
| Vacuum Pump Specifications | |
| Power Supply | Single-phase, AC 100–220 V ±10%, 50/60 Hz |
| Maximum Power | 120 W |
| Ultimate Pressure | –0.1 MPa |
| Pumping Speed | 3.6 m³/h |
| Packing Dimensions | H 220 × W 275 × D 110 mm |
| Net Weight | 7.2 kg |
| Gross Weight | 7.7 kg |
Package contents
- SANEI Honor Digital Vacuum Wax Injector main unit
- Operation manual
- Power cord
- Standard accessories set
Frequently asked questions
What are the main benefits of the custom digital display?
It provides clearer, more intuitive operation by presenting numbers and units together, simplifying the workflow.
What automation features are included?
Includes shortcuts for automated operation, mold detection, air supply monitoring, waste wax cover detection, and error prevention.
Can this machine reduce production defects?
Yes, advanced mechanical and detection systems significantly reduce bubbles, leaks, and other common defects.
