SNBK0007

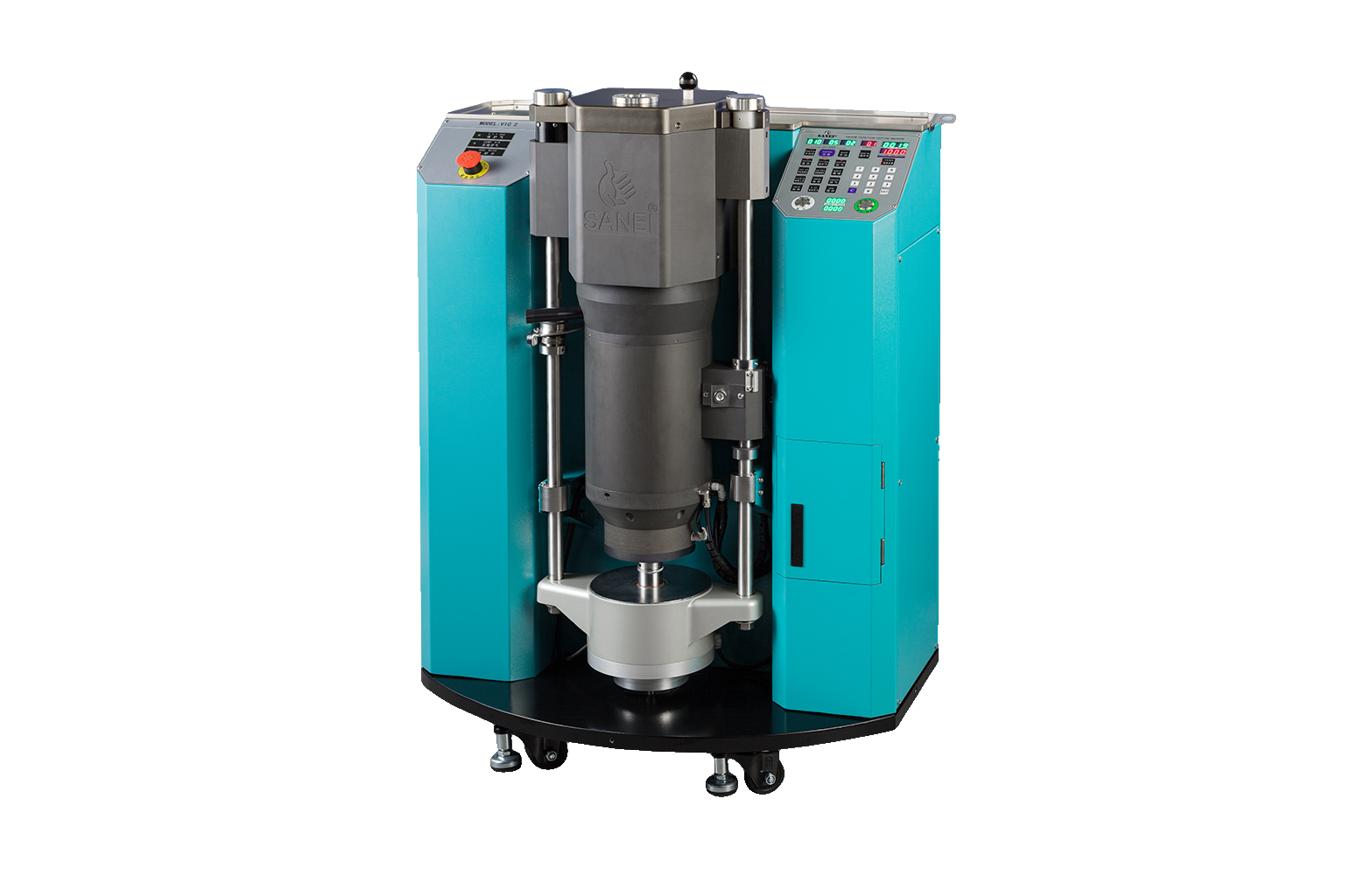

SANEI VIC-2 Automatic Vacuum Pressure Casting Machine
SANEI · VIC-2
Automatic vacuum pressure casting machine for precious metals, featuring precision temperature control, program memory, and ultra-low material loss.
Highlights
- 01
Powerful low-frequency stirring enables casting without opening the feed.
- 02
Precise temperature control and excellent air tightness for oxidation protection.
- 03
Adjustable pressurization up to 3kg; pressure speed is freely adjustable.
- 04
Parts per thousand ultra-low material loss rate.
- 05
Three-stage adjustable power switching from 6kW to 15kW.
Applications
Casting of precious metal alloys (gold, silver) in jewelry manufacturing.
Small batch precision casting applications.
Workshops requiring oxidation-resistant, high-quality castings.
Overview
The SANEI VIC-2 Automatic Vacuum Pressure Casting Machine is engineered for precision casting of precious metal alloys such as gold and silver. Its robust low-frequency stirring system allows for casting without opening the feed, minimizing contamination. With tight air sealing and advanced anti-oxidation protection, the unit ensures reliable results. User-friendly features include adjustable pressurization up to 0.3MPa, a memory for 50 casting programs, and a self-diagnosis alarm system. Efficient operation is supported by a triple-range power setting and flexible inert gas usage, making it suitable for demanding workshops.
Technical data
Specifications
24 parameters
| Power Supply | 3-phase, 380 V ± 10%, 50/60 Hz |
|---|---|
| Power Input | Approx. 15 kVA |
| Maximum Output Power | 15 kW |
| Weight | Approx. 186 kg |
| Dimensions | W 470 × L 800 × H 1130 mm |
| Maximum Casting Flask Size | Ø127 × 254 mm (5 × 10 in); Max. 5 × 12 in |
| Crucible | Dedicated crucible |
| Crucible Size | Ø78 × 115 mm |
| Melting Materials | Gold alloys, silver alloys |
| Melting Capacity | Approx. 240 cc |
| Temperature Range | Standard: up to 1200 ℃; Optional: 1450 ℃ |
| Temperature Sensor | K-type thermocouple, 1200 ℃ standard; R-type thermocouple, 1450 ℃ optional |
| Maximum Pressurizing Pressure | 0.3 MPa |
| Protective Gas | Inert gas (nitrogen or argon) |
| Casting Program Memory | 50 programs |
| Cooling Method | Direct-flow water cooling |
| Casting Method | Vacuum-assisted pressure casting |
| Fault Alarm | Self-diagnostic fault display |
| Ambient Temperature | 5–30 ℃ |
| Ambient Humidity | ≤80% RH |
| Water Chiller | 2 HP |
| Vacuum System | Optional |
| Vacuum Pump Option 1 | Busch RA0040, Germany |
| Vacuum Pump Option 2 | Zhongde V0040D, Shanghai |
Package contents
- SANEI VIC-2 automatic vacuum pressure casting machine
- User manual
Frequently asked questions
What is the maximum temperature the machine can reach?
Standard up to 1200°C, with an optional upgrade to 1450°C.
Which gases are supported for casting?
Inert gases such as argon and nitrogen are supported.
How many casting programs can be stored?
Up to 50 casting programs can be stored for quick recall.
What is the warranty period?
Two years for the entire machine, and three years for the heating power supply.
