SNBK0008

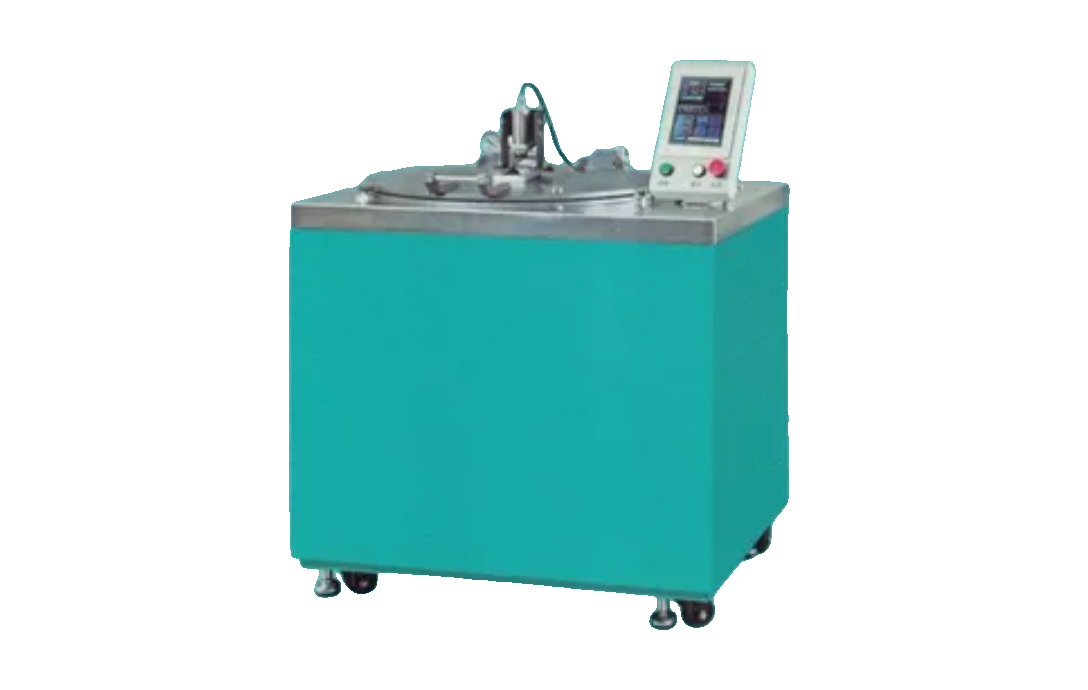

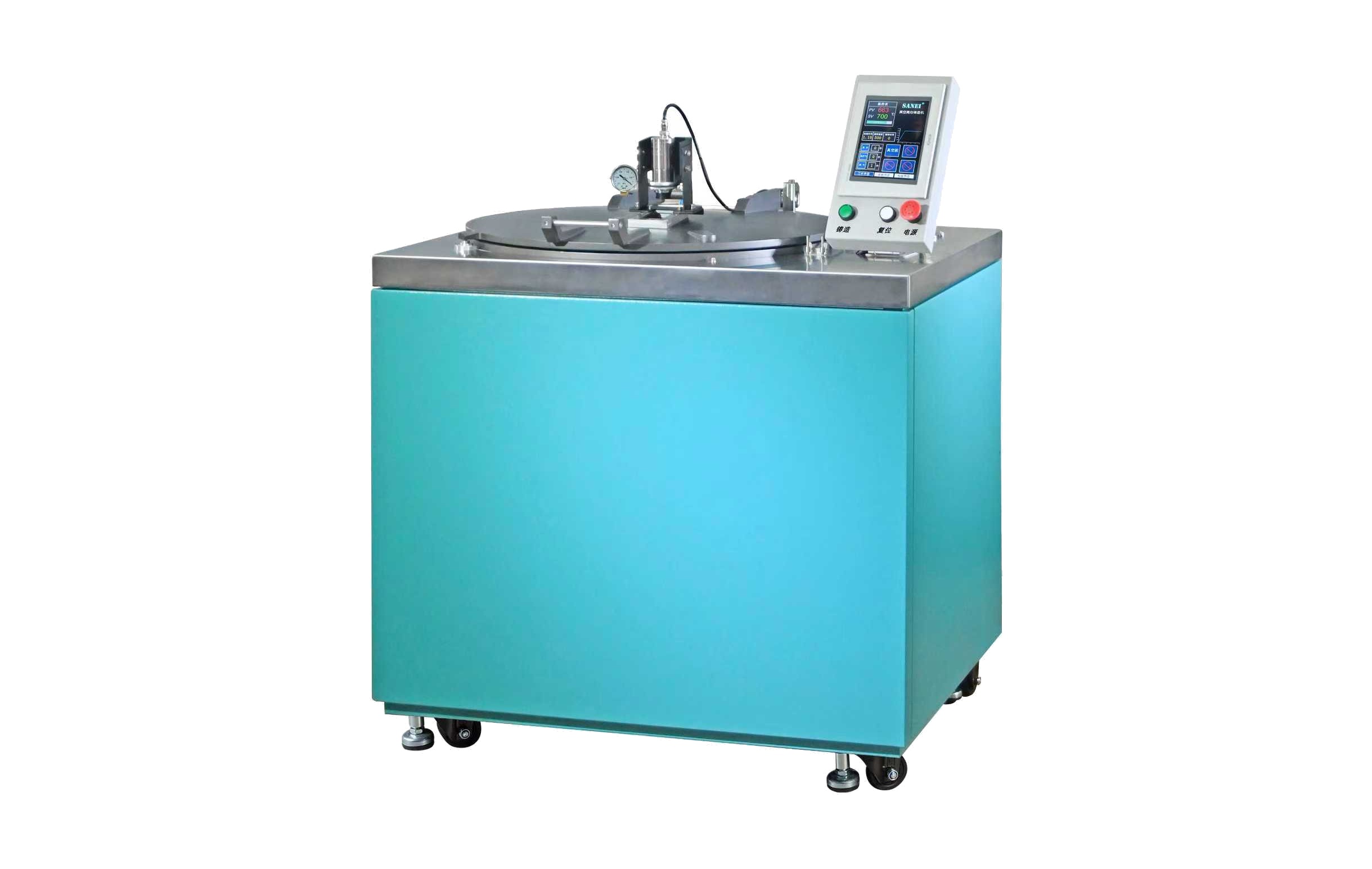

SANEI Platinum Vacuum Centrifugal Casting Machine
SANEI
High-powered vacuum centrifugal casting machine for platinum and similar metals, featuring advanced temperature control and quartz crucible.
Highlights
- 01
Up to 8–10 KVA output for heavy-duty casting
- 02
Melts platinum and similar metals up to 500g per batch
- 03
Advanced infrared temperature measurement (700–2600℃)
- 04
Supports both nitrogen and argon protective gas
- 05
Water-cooled design for stable operation
Applications
Platinum jewelry casting
Casting for high-melting-point precious metals
Specialty alloy component manufacturing
Dental alloy casting
Laboratory metal casting research
Overview
The SANEI Platinum Vacuum Centrifugal Casting Machine is designed for efficient and precise casting of platinum and other high-melting-point metals. With robust power output and a comprehensive temperature range, it utilizes a quartz crucible, advanced vacuum technology, and supports protective gas atmospheres. Its compact footprint and water-cooling system ensure reliable operation for industrial jewelry and specialty alloy casting needs.
Technical data
Specifications
16 parameters
| Power Supply | 3-phase, 380 V ±10%, 50/60 Hz, Max. 8 kVA |
|---|---|
| Output Capacity | Max. 8–10 kVA |
| Weight | 268 kg |
| Dimensions | L 1020 × W 805 × H 1070 mm |
| Maximum Casting Flask Size | Ø5 × L6 in |
| Crucible | Quartz crucible |
| Melting Materials | Platinum, palladium, etc. (iridium, ruthenium) |
| Melting Capacity | 50–500 g |
| Temperature Measurement Range | 700–2600 ℃ |
| Temperature Measurement Method | Infrared |
| Vacuum Range | 0–600 mmHg |
| Protective Gas | Argon, nitrogen |
| Cooling Method | Water cooling (≥3 L/min) |
| Casting Method | Centrifugal casting |
| Water Chiller | ≥3 HP |
| Vacuum Pump | Zhongde V0063D |
Package contents
- Main casting machine unit
- Quartz crucible
- Instruction manual
Frequently asked questions
What materials can be melted with this machine?
It is suitable for platinum, palladium, and similar high-melting-point metals.
What is the maximum batch melting capacity?
Up to 500g per batch for platinum.
Which gases can be used as protective atmospheres?
Both nitrogen and argon can be used as protective gases.
