SNBK0005

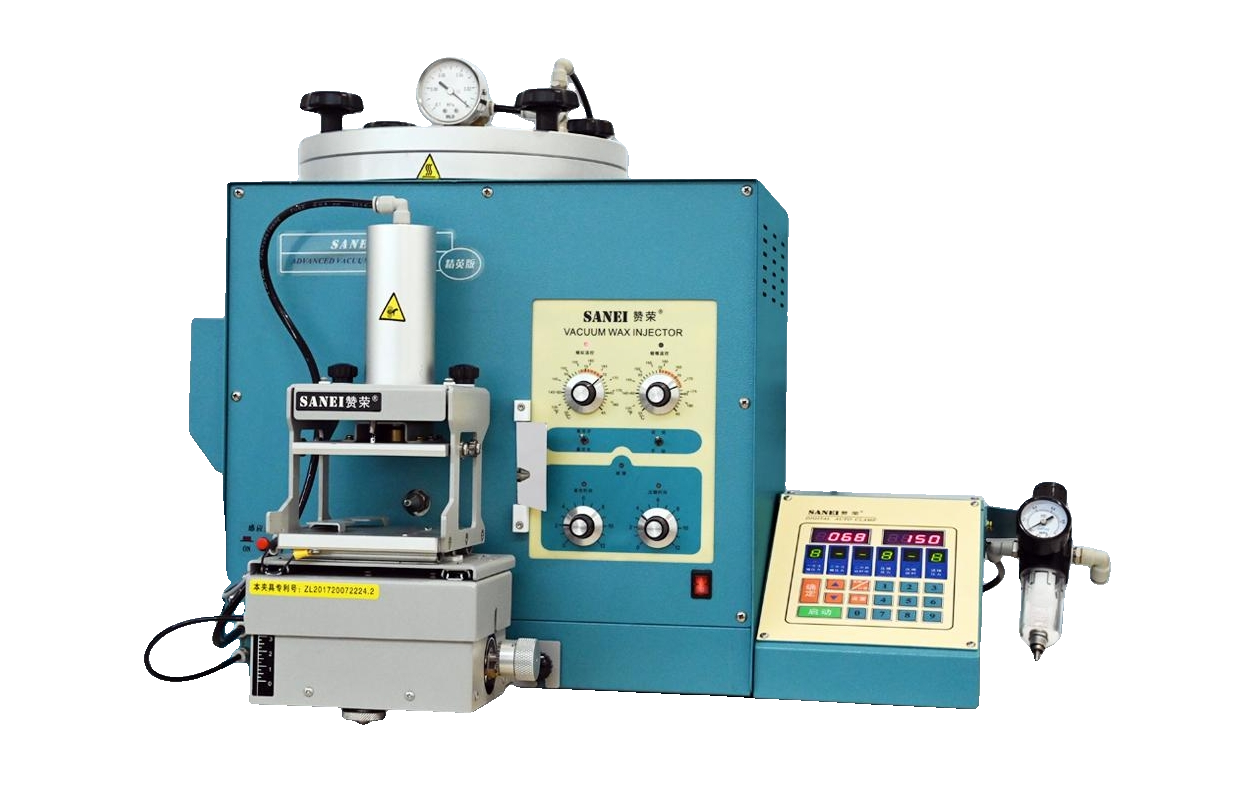

SANEI Elite Vacuum Wax Injector
SANEI · Elite
The SANEI Elite Vacuum Wax Injector features a manual lifting fixture for precise, quick mold adjustment, supporting both manual and automatic injection modes.
Highlights
- 01
Manual lifting fixture enables tool-free, precise mold positioning with just two fingers.
- 02
Combines manual and automatic wax injection modes for flexibility.
- 03
Automatic multi-directional micro-adjustment for easy and accurate alignment.
- 04
Magnetic sensor triggers automatic wax injection without manual switch activation.
- 05
User-friendly, efficient, and highly automated design.
Applications
Jewelry manufacturing wax model production
Industrial casting and prototyping
Precision mold injection for small components
Overview
The SANEI Elite Vacuum Wax Injector utilizes a newly designed manual lifting fixture, allowing users to quickly adjust the mold's position with two fingers and no tools. The system supports both manual and automatic wax injection, the latter triggered by a magnetic sensor for greater convenience. Its precision micro-adjustments and robust construction improve user experience, process efficiency, and automation capabilities.
Technical data
Specifications
29 parameters
| Wax Injector Specifications | |
|---|---|
| Power Supply | Single-phase AC 100–220 V ±10%, 50/60 Hz |
| Rated Power | 500 W |
| Temperature Display Range | 55–85 ℃ (131–185 ℉) |
| Temperature Setting Range | 55–85 ℃ (131–185 ℉) |
| Temperature Accuracy | ±1 ℃ |
| Vacuum Time Setting Range | 0–12 s |
| Wax Injection Time Setting Range | 0–12 s (operator-controlled in manual mode) |
| Timing Accuracy | 0.1 s |
| Wax Tank Capacity | Approx. 3 kg |
| Vacuum Gauge Range | −0.1–0 MPa |
| Fuse Rated Current | 5 A |
| Packing Dimensions | L 532 × W 382 × D 565 mm |
| Net Weight | 21.5 kg |
| Clamp Unit Specifications | |
| External Air Pressure | 0.4–0.7 MPa |
| Pressure Regulator Setting Range | 0.25–0.40 MPa |
| Pressure Sensor Display Range | −5–240 kPa |
| Primary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Start Time Setting Range | 0–99.9 s |
| Clamp Pressure Setting Range | 30–235 kPa |
| Clamp Forward Pressure Setting Range | 65–235 kPa |
| Clamp Hold Time Setting Range | 0–300 s |
| Maximum Work Count | 0–9999 |
| Data Storage Capacity | 10,000 sets |
| Activation Method | Magnetic sensor or push button |
| Rubber Mold Size (Standard) | L 135 × W 105 × D 45 mm (max.) |
| Rubber Mold Size (Wide) | L 135 × W 135 × D 60 mm (max.) |
| Packing Dimensions | L 543 × W 278 × D 540 mm |
| Net Weight | 12 kg |
Package contents
- SANEI Elite Vacuum Wax Injector main unit
- Manual lifting fixture
- Magnetic sensor assembly
Frequently asked questions
What is the maximum mold size supported?
For standard: L 135 x W 105 x D 45 mm; for widened: L 135 x W 135 x D 60 mm.
Does the injector support both manual and automatic operation?
Yes, both manual and automatic wax injection modes are supported.
How is the automatic injection triggered?
Automatic injection is activated by a magnetic sensor on the mold frame.
