SNBK0006

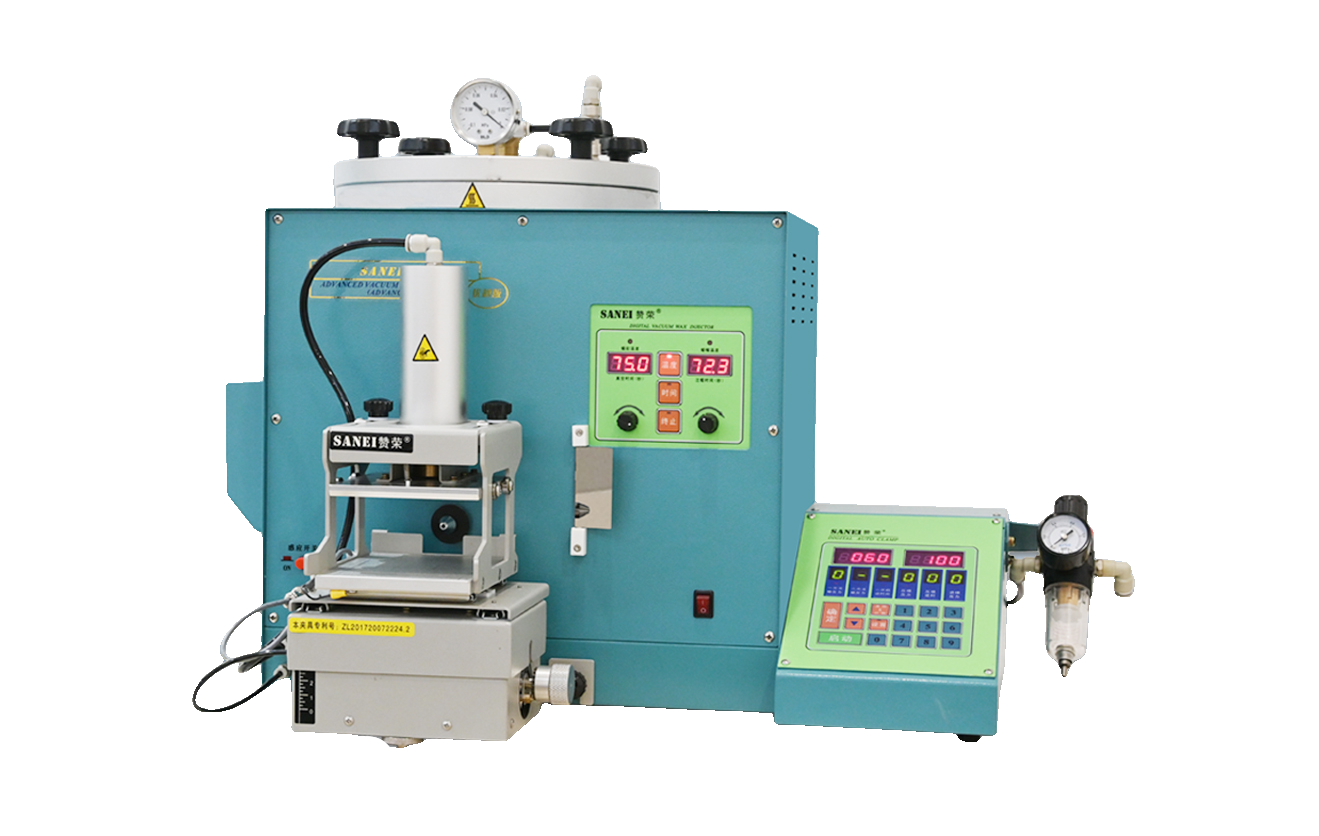

SANEI Superior Vacuum Wax Injector
SANEI · Superior
Advanced vacuum wax injector with direct-flow injection, tool-free fixture, programmable controls, and high-accuracy alignment for precision wax modeling.
Highlights
- 01
Cylinder-structure direct-flow injection valve greatly extends injection reach for high accuracy molds.
- 02
Manual lift fixture enables two-finger, tool-free precise up/down mold adjustments.
- 03
Automatic multi-directional micro-adjustments ensure repeatable and reliable mold alignment.
- 04
High-accuracy: ±0.5°C temperature, 0.1s timing, wide programmable control.
- 05
Multiple process start options: magnetic sensor or push button.
Applications
Wax pattern production for jewelry casting molds
High-precision industrial wax part manufacturing
Mold manufacturing labs needing consistent, efficient wax injection
Overview
The SANEI Superior Vacuum Wax Injector delivers enhanced precision and efficiency for wax pattern production. Its direct-flow cylinder injection valve achieves far longer injection distances, while the innovative manual lift fixture allows quick, tool-free mold positioning. Automatic multi-directional fixture adjustment ensures repeatable nozzle-to-mold alignment. Combined with high-accuracy temperature and timing controls, this machine streamlines workflow for jewelry and industrial mold makers.
Technical data
Specifications
30 parameters
| Wax Injector Specifications | |
|---|---|
| Power Supply | Single-phase AC 100–220 V ±10%, 50/60 Hz |
| Rated Power | 500 W |
| Temperature Display Range | 40.0–99.9 °C (104–212 °F) |
| Temperature Setting Range | 40–90 °C (104–194 °F) |
| Temperature Accuracy | ±0.5 °C |
| Vacuum Time Setting Range | 0–12 s |
| Wax Injection Time Setting Range | 0–600 s |
| Scheduled Heating Start Time | 0–99 h |
| Timing Accuracy | 0.1 s |
| Wax Tank Capacity | Approx. 3 kg |
| Vacuum Gauge Range | −0.1–0 MPa |
| Fuse Rated Current | 5 A |
| Packing Dimensions | L 525 × W 380 × D 558 mm |
| Net Weight | 19 kg |
| Clamp Unit Specifications | |
| External Air Pressure | 0.4–0.7 MPa |
| Pressure Regulator Setting Range | 0.25–0.40 MPa |
| Pressure Sensor Display Range | –5–240 kPa |
| Primary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Start Time Setting Range | 0–99.9 s |
| Clamp Pressure Setting Range | 30–235 kPa |
| Clamp Forward Pressure Setting Range | 65–235 kPa |
| Clamp Hold Time Setting Range | 0–300 s |
| Production Counter Range | 0–9999 |
| Data Storage Capacity | 10,000 sets |
| Activation Method | Magnetic sensor or push button |
| Rubber Mold Size (Standard) | L 135 × W 105 × D 45 mm (max.) |
| Rubber Mold Size (Wide) | L 135 × W 135 × D 65 mm (max.) |
| Packing Dimensions | L 530 × W 270 × D 530 mm |
| Net Weight | 10 kg |
Frequently asked questions
What are the supported mold dimensions?
Standard: L 135 x W 105 x D 45 mm; Widened: L 135 x W 135 x D 65 mm (maximum).
What power supply is required?
Single phase, AC 100-220V±10%, 50/60Hz.
Does the machine support tool-free mold adjustments?
Yes, the manual lift fixture allows mold positioning without tools, using only two fingers.
